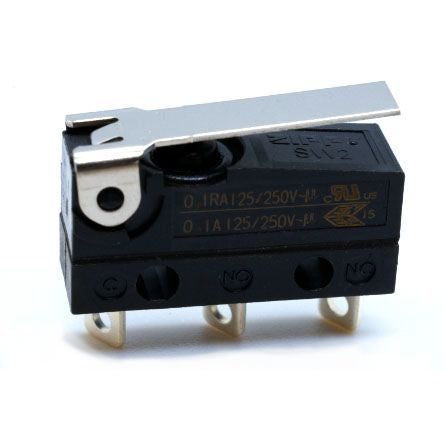

SPDT-NO/NC Short Hinge Lever Microswitch [SW2-C1S1-01A0-Z]; 185-4036
by Zippy
0₫
Mã kho: 1854036
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Actuator Type | Snap |
Terminal Type | Solder |
Contact Current Rating | 100 mA |
Contact Configuration | Single Pole Double Throw (SPDT) |
IP Rating | IP67 |
Operating Force | 82 gf |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Contact Material | Ag Alloy, Brass |
Case Material | Polyamide |
Release Force | 16gf |
Voltage Rating | 125 V ac, 250 V ac |
Operating Temperature Range | -40 → +125°C |
