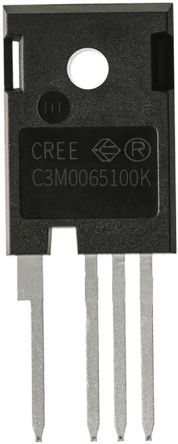

C3M0065100K SiC N-Channel MOSFET, 35 A, 1000 V C3M, 4-Pin TO-247 Wolfspeed [C3M0065100K]; 125-3453
by Wolfspeed
0₫
Mã kho: 1253453
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 1000 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 90 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 1.8V |
| Maximum Power Dissipation | 113.5 W |
| Maximum Gate Source Voltage | -8 V, +19 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 4.8V |
| Height | 23.6mm |
| Maximum Operating Temperature | +150 °C |
| Width | 5.21mm |
| Minimum Operating Temperature | -55 °C |
| Series | C3M |
| Length | 16.13mm |
| Typical Gate Charge @ Vgs | 35 nC @ 15 V, 35 nC @ 4 V |
| Transistor Material | SiC |
