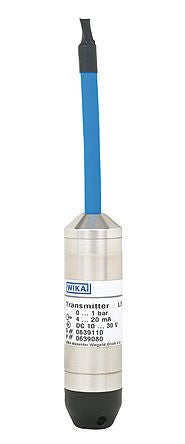

WIKA for Liquid Pressure Sensor, 8.5psi Max Pressure Reading , 10 → 30 V dc, IP68 [46879445]; 124-1464
by WIKA
0₫
Mã kho: 1241464
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 8.5psi |
| Accuracy | 0.005 |
| Output Type | Analogue |
| Media Measured | Liquid |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | PUR Cable (15 metres) |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| IP Rating | IP68 |
| Minimum Operating Temperature | -10°C |
| Maximum Pressure Setting | 8.5psi |
| Minimum Pressure Setting | 0psi |
| Series | LS-10 |
| Maximum Operating Temperature | +50°C |
