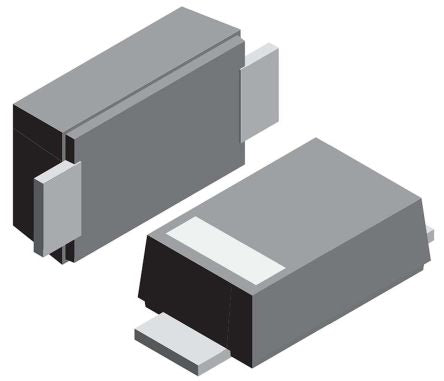

Vishay 200V 1A, Diode, 2-Pin DO-219AB VS-1EFH02HM3/I [VS-1EFH02HM3/I]; 872-2862
by Vishay
0₫
Mã kho: 8722862
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-219AB |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 930mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 25ns |
| Peak Non-Repetitive Forward Surge Current | 40A |
