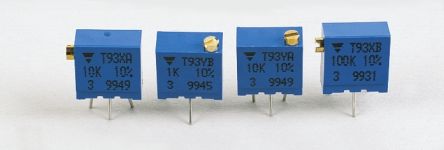

5kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Vishay T93 Series [T93YA502KT20]; 788-5079
by Vishay
0₫
Mã kho: 7885079
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 5 kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 21 |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | T93 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Length | 9.7mm |
| Shaft Diameter | 2.2 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
