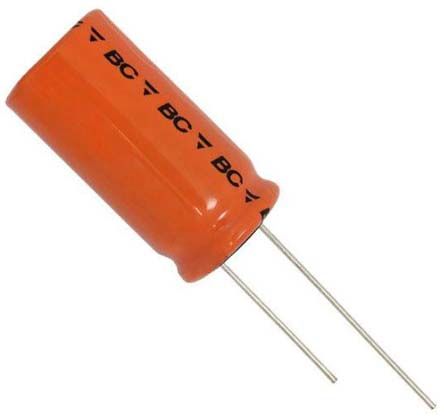

Vishay 50F Supercapacitor EDLC -20 → +50% Tolerance 220 EDLC-P Series 2.7V dc Through Hole [MAL222091008E3]; 144-1325
by Vishay
0₫
Mã kho: 1441325
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 50 F |
| Voltage | 2.7 V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Diameter | 18.5mm |
| Dimensions | 18.5 (Dia.) x 37.5mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 25 mA, 250 μA |
| Equivalent Series Resistance | 15mΩ |
| Lifetime | 1000h |
| Series | 220 EDLC-P |
| Tolerance | -20 → +50% |
| Tolerance Minus | -0.2 |
| Lead Spacing | 7.5mm |
| Lead Diameter | 0.8mm |
| Terminal Type | Radial |
| Depth | 37.5mm |
| Capacitor Family | Electric Double Layer |
| Polarised | Polar |
| Product Diameter | 18.5mm |
| Package/Case | 22 |
| Tolerance Plus | 0.5 |
