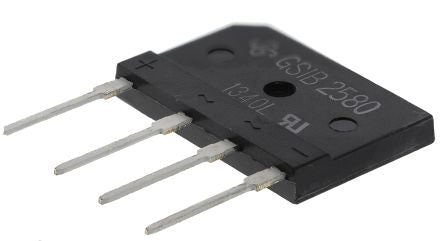

Vishay GSIB2580-E3/45, Bridge Rectifier, 25A 800V, 4-Pin GSIB-5S [GSIB2580-E3/45]; 700-5469
by Vishay
0₫
Mã kho: 7005469
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 25A |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Through Hole |
| Package Type | GSIB-5S |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 350A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 10µA |
| Length | 30mm |
| Height | 20mm |
| Width | 4.6mm |
| Dimensions | 30 x 4.6 x 20mm |
