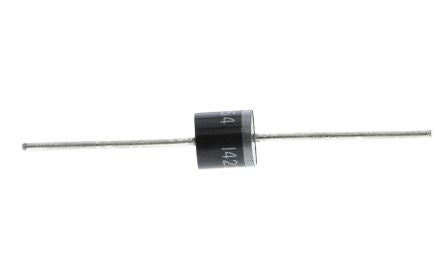

Vishay 400V 6A, Diode, 2-Pin P600 GI754-E3/54 [GI754-E3/54]; 708-8016
by Vishay
0₫
Mã kho: 7088016
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | P600 |
| Maximum Continuous Forward Current | 6A |
| Peak Reverse Repetitive Voltage | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 2.5µs |
| Diameter | 9.1mm |
| Peak Non-Repetitive Forward Surge Current | 400A |
