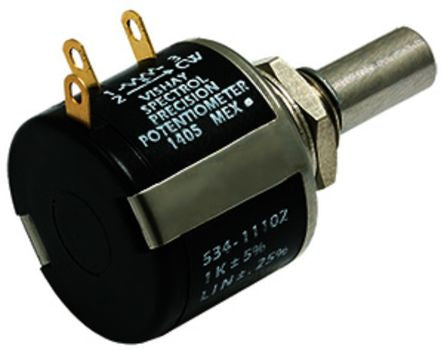

Vishay 1 Gang 10 Turn Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 1kΩ, ±5%, 2W, Linear 534B1102JL [534B1102JL]; 167-9486
by Vishay
0₫
Mã kho: 1679486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Potentiometer Type | Rotary |
Maximum Resistance | 1 kΩ |
Number of Gangs | 1 |
Number of Turns | 10 |
Power Rating | 2W |
Electrical Taper | Linear |
Element Material | Wirewound |
Mounting Type | Panel Mount |
Termination Style | Solder Lug |
Shaft Length | 20.6mm |
Shaft Diameter | 6.35 mm |
Tolerance | ±5% |
Actuator Type | Slotted Shaft |
Series | 534 |
