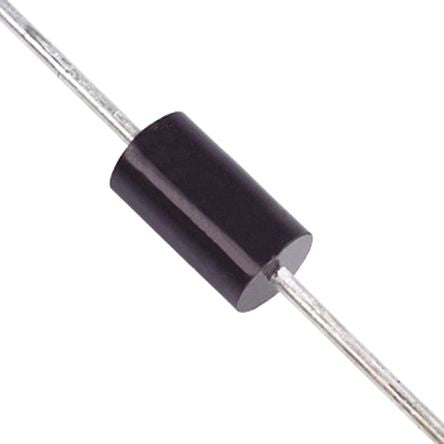

Vishay 600V 3A, Diode, 2-Pin DO-201AD 1N5406-E3/54 [1N5406-E3/54]; 165-2354
by Vishay
0₫
Mã kho: 1652354
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Through Hole |
Package Type | DO-201AD |
Maximum Continuous Forward Current | 3A |
Peak Reverse Repetitive Voltage | 600V |
Diode Configuration | Single |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.2V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Diameter | 5.3mm |
Peak Non-Repetitive Forward Surge Current | 200A |
