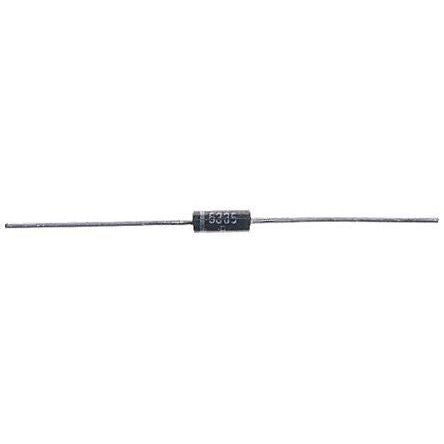

Vishay 200V 1A, Diode, 2-Pin DO-204AL 1N4935-E3/54 [1N4935-E3/54]; 145-2163
by Vishay
0₫
Mã kho: 1452163
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | DO-204AL |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.2V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 200ns |
| Diameter | 2.7mm |
| Peak Non-Repetitive Forward Surge Current | 30A |
