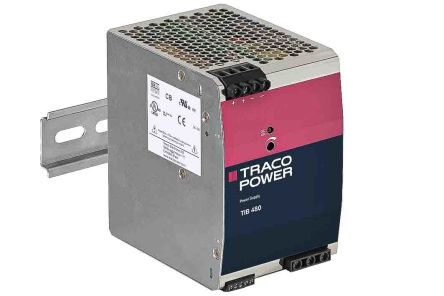

TRACOPOWER, TIB DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [TIB 480-124]; 125-8539
by TRACOPOWER
0₫
Mã kho: 1258539
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 124.2mm |
| Width | 82mm |
| MTBF | >1000000h |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 100mV Pk-Pk |
| Special Features | Active Power Factor, Adjustable Output Voltage, Alternative Side-Mounting for Flat Panels, Back Power Immunity |
| Minimum Temperature | -25°C |
| Output Voltage Adjustment Range | 23.5 → 28V |
| Maximum Temperature | +70°C |
| Depth | 118.6mm |
| Standards Met | CB Scheme, CCSAus, CE, CULus, EN 50022-35X15/7.5, EN 50178, EN 55022, EN 60204, EN 61000-6-2, EN 61000-6-3, EN 61204-3, EN 61558-2-16, EN 61558-2-8, IEC 61000-3-2, IEC/EN 60335-1, IEC/EN 60529, IEC/EN 60950-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62477, IP20, NEC, SI, UL 1310, UL 508, UL 60950-1 |
| Series | TIB |
