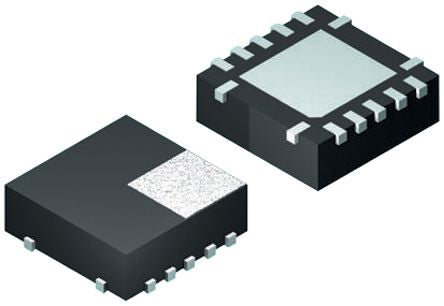

Texas Instruments TXB0104RGYR, Voltage Level Shifter, 3-State, 1.2 → 3.6 V, 1.65 → 5.5 V, 14-Pin QFN [TXB0104RGYR]; 709-8710
0₫
Mã kho: 7098710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Voltage Level Translator |
| Maximum High Level Output Current | -0.02mA |
| Maximum Low Level Output Current | 0.02mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 7.4 ns@ 1.8 V |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 14 |
| Dimensions | 3.5 x 3.5 x 0.9mm |
| Height | 0.9mm |
| Length | 3.5mm |
| Maximum Operating Supply Voltage | 3.6 V, 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.2 V, 1.65 V |
| Width | 3.5mm |
| Maximum Operating Temperature | +85 °C |
