![Texas Instruments TPS62675YFDT 1628815](http://nguyenxuong.com/cdn/shop/products/R1234017-04_6d9d65cd-550b-460b-875b-4783189b7093_444x299.jpg?v=1594368140)

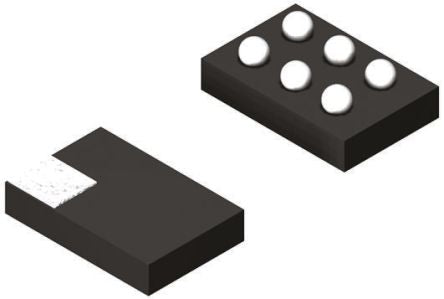

Texas Instruments, TPS62675YFDT Step-Down Switching Regulator 650mA 6-Pin, DSBGA [TPS62675YFDT]; 162-8815
0₫
Mã kho: 1628815
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 650mA |
Maximum Output Voltage | 1.2 V |
Regulator Function | Buck |
Minimum Input Voltage | 2.3 V |
Maximum Input Voltage | 4.8 V |
Output Type | Fixed |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Pin Count | 6 |
Package Type | DSBGA |
Switching Regulator | Yes |
Line Regulation | 0.23 %/V |
Load Regulation | -0.00045 %/mA |
Length | 1.33mm |
Dimensions | 1.33 x 0.956 x 0.225mm |
Maximum Operating Temperature | +85 °C |
Height | 0.225mm |
Maximum Switching Frequency | 6.6 MHz |
Width | 0.956mm |
Minimum Operating Temperature | -40 °C |
Efficiency | 0.92 |
