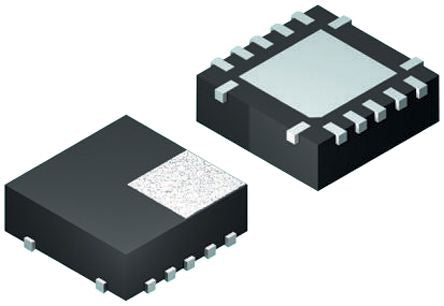

Texas Instruments, TPS54320RHLR Step-Down Switching Regulator 3A Adjustable, 0.8 → 15 V 14-Pin, VQFN [TPS54320RHLR]; 921-3053
0₫
Mã kho: 9213053
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 15 V |
| Regulator Function | Buck |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 1.6 V |
| Maximum Input Voltage | 17 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 14 |
| Package Type | VQFN |
| Switching Regulator | Yes |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 1320 kHz |
| Dimensions | 3.65 x 3.65 x 0.95mm |
| Height | 0.95mm |
| Length | 3.65mm |
| Width | 3.65mm |
