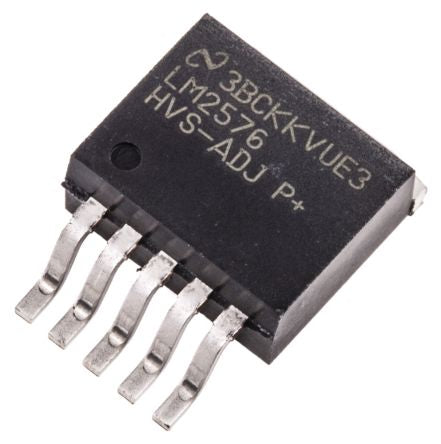

Texas Instruments, LM2576HVS-ADJ/NOPB Step-Down Switching Regulator 3A Adjustable, 1.23 → 57 V 5-Pin D2PAK [LM2576HVS-ADJ/NOPB]; 460-487
0₫
Mã kho: 460487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 3A |
Maximum Output Voltage | 57 V |
Regulator Function | Buck Controller, Inverting |
Minimum Output Voltage | 1.23 V |
Minimum Input Voltage | 4 V |
Maximum Input Voltage | 60 V |
Output Type | Adjustable |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Pin Count | 5 |
Package Type | D2PAK (TO-263) |
Switching Regulator | Yes |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Height | 4.57mm |
Width | 8.64mm |
Dimensions | 10.16 x 8.64 x 4.57mm |
Efficiency | 0.77 |
Length | 10.16mm |
Maximum Switching Frequency | 58 kHz |
