![Texas Instruments LM2575T-5.0/LF03 460483](http://nguyenxuong.com/cdn/shop/products/F0460483-01_a17772b0-e754-4f17-ae72-432679c6e224_444x208.jpg?v=1594046774)

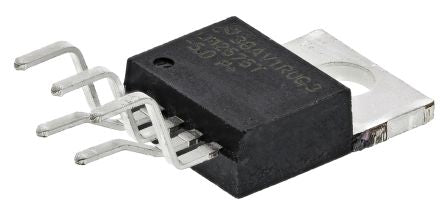

Texas Instruments, LM2575T-5.0/LF03 Step-Down Switching Regulator 1A, 5 V 5-Pin, TO-220, Buck Controller [LM2575T-5.0/LF03]; 460-483
0₫
Mã kho: 460483
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 1A |
Regulator Function | Buck Controller, Inverting |
Minimum Input Voltage | 4 V |
Maximum Input Voltage | 40 V |
Output Type | Fixed |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Pin Count | 5 |
Package Type | TO-220 |
Switching Regulator | Yes |
Dimensions | 10.16 x 4.7 x 8.89mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +125 °C |
Length | 10.16mm |
Width | 4.7mm |
Maximum Switching Frequency | 58 kHz |
Height | 8.89mm |
Efficiency | 0.77 |
