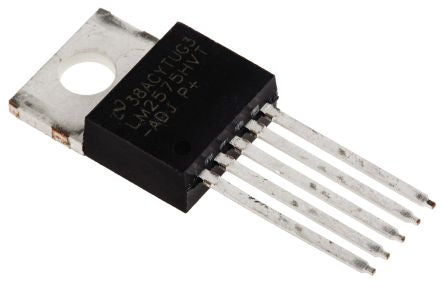

Texas Instruments, LM2575HVT-ADJ/NOPB Step-Down Switching Regulator 1A Adjustable, 1.23 → 57 V 5-Pin, TO-220 [LM2575HVT-ADJ/NOPB]; 533-8041
0₫
Mã kho: 5338041
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 1A |
Maximum Output Voltage | 57 V |
Regulator Function | Buck Controller, Inverting |
Minimum Output Voltage | 1.23 V |
Minimum Input Voltage | 4 V |
Maximum Input Voltage | 60 V |
Output Type | Adjustable |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Pin Count | 5 |
Package Type | TO-220 |
Switching Regulator | Yes |
Length | 10.16mm |
Efficiency | 0.77 |
Dimensions | 10.16 x 4.7 x 8.89mm |
Maximum Operating Temperature | +125 °C |
Width | 4.7mm |
Maximum Switching Frequency | 58 kHz |
Minimum Operating Temperature | -40 °C |
Height | 8.89mm |
