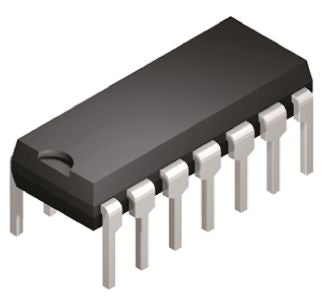

Quad 3 state buffer,CD74HCT125E DIP14 [CD74HCT125E]; 145-1014
0₫
Mã kho: 1451014
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HCT |
| Logic Function | Buffer, Line Driver |
| Number of Channels | 4 |
| Schmitt Trigger Input | No |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Maximum High Level Output Current | -6mA |
| Maximum Low Level Output Current | 6mA |
| Maximum Propagation Delay Time @ Maximum CL | 25 ns @ 4.5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 6.35mm |
| Minimum Operating Temperature | -55 °C |
| Height | 4.57mm |
| Length | 19.3mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
