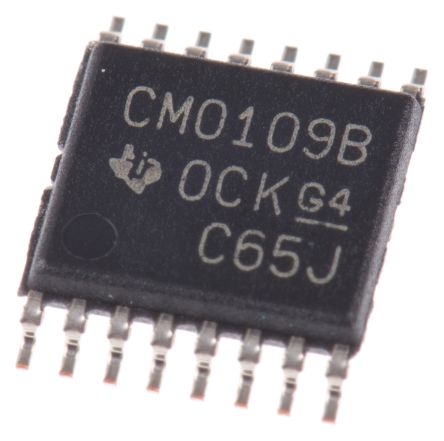

Texas Instruments CD40109BPW, Voltage Level Shifter, 3-State, 16-Pin TSSOP [CD40109BPW]; 162-7236
0₫
Mã kho: 1627236
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 4000 |
| Logic Function | Voltage Level Shifter |
| Maximum High Level Output Current | -4.2mA |
| Maximum Low Level Output Current | 4.2mA |
| Output Type | 3 State |
| Maximum Propagation Delay Time @ Maximum CL | 600 ns @ 10 V |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 16 |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 18 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -55 °C |
| Width | 4.4mm |
