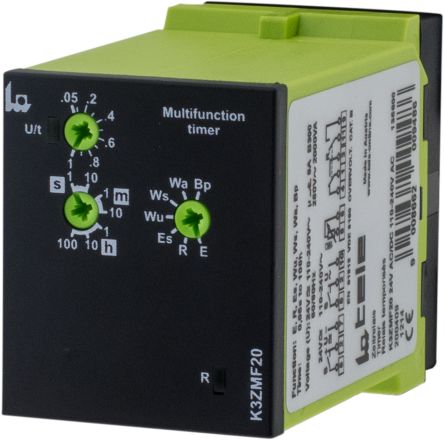

Tele Multi Function Timer Relay, Screw, 1 s → 100 h, NO/CO, 11 Contacts, 110 → 240 V ac, 24 V ac/dc [K3ZMF20 24V AC/DC 110-240VAC]; 123-9740
by Tele
0₫
Mã kho: 1239740
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc, 110 → 240 V ac |
| Time Range | 1 s → 100 h |
| Mode of Operation | Flasher Pause First, OFF Delay, ON Delay, ON Delay with Control Input, Single Shot Leading Edge Voltage Controlled, Single Shot Leading Edge with Control Input, Single Shot Trailing Edge with Control Input |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 11 |
| Series | K3ZMF20 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | NO/CO |
| Current Maximum | 0.333333333333333 |
| Terminal Type | Screw |
| Minimum Voltage | 24 V ac/dc, 110 V ac |
| Maximum Voltage | 240 V ac |
| Length | 38mm |
| Width | 67mm |
| Time Delay | 100 (Reset) ms |
| Depth | 51mm |
| Minimum Operating Temperature | -25°C |
| Contact Material | Silver Nickel |
| Maximum Operating Temperature | +55°C |
