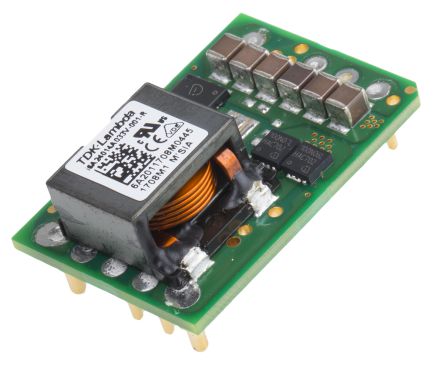

Non-Isolated DC-DC Converter, 3.3 → 24V dc Output, 14A [I6A-240-14A-033V/001-R]; 173-9151
by TDK-Lambda
0₫
Mã kho: 1739151
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 9 → 40 V dc |
| Output Voltage | 3.3 → 24V dc |
| Output Current | 14A |
| Power Rating | 250W |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Length | 33mm |
| Width | 22.9mm |
| Depth | 12.7mm |
| Efficiency | 0.98 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +125°C |
| Series | i6A |
| Output Voltage Adjustment Range | -4 → +4% |
| Current Limiting Method | Constant Current Limiting |
| Power Signal Conversion Type | DC-DC |
| Regulator Type | Linear Power Supply |
| Ripple And Noise | 20mV Pk-Pk |
| Weight | 15g |
| Protection Features | Over Current Protection |
| Application | Broadcast, Communication, Industrial, Test |
| Line Regulation | 0.003 |
| Special Features | Constant Switching Frequency, Minimal External Components Needed |
| Load Regulation | 0.01 |
