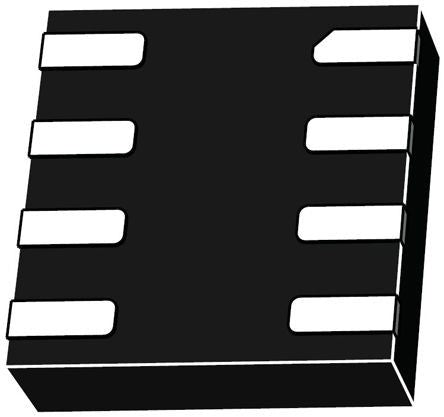

TSU102IQ2T STMicroelectronics, Low Power, Op Amp, RRIO, 8kHz, 1.5 → 5.5 V, 8-Pin DFN [TSU102IQ2T]; 792-6117
0₫
Mã kho: 7926117
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.5 → 5.5 V |
| Typical Gain Bandwidth Product | 8kHz |
| Typical Slew Rate | 3V/ms |
| Maximum Operating Frequency | 100 Hz |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 115 dB |
| Width | 2mm |
| Height | 0.75mm |
| Length | 2mm |
| Rail to Rail | Rail to Rail Input/Output |
| Typical Input Voltage Noise Density | 260nV/√Hz |
| Dimensions | 2 x 2 x 0.75mm |
