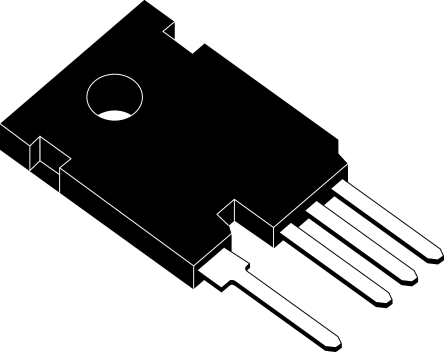

STW69N65M5-4 N-Channel MOSFET, 58 A, 710 V MDmesh M5, 4-Pin TO-247 STMicroelectronics [STW69N65M5-4]; 168-7123
0₫
Mã kho: 1687123
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 58 A |
| Maximum Drain Source Voltage | 710 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 45 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 330 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Series | MDmesh M5 |
| Width | 5.1mm |
| Typical Gate Charge @ Vgs | 143 nC @ 10 V |
| Length | 15.9mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 21.1mm |
