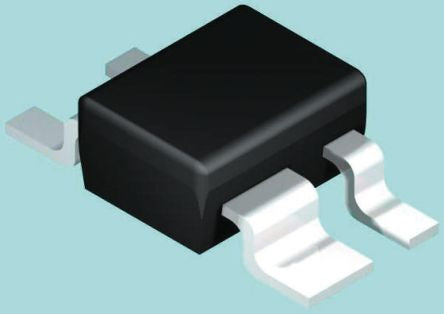

STMicroelectronics STM6315SDW13F, Reset Circuit 2.93V, Reset Input 4-Pin, SOT-143 [STM6315SDW13F]; 168-6350
0₫
Mã kho: 1686350
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Supervisors | 1 |
| Output Driver | Active Low, Open Drain |
| Mounting Type | Surface Mount |
| Package Type | SOT-143 |
| Pin Count | 4 |
| Manual Reset | Yes |
| Maximum Reset Active Time | 210ms |
| Dimensions | 3.04 x 1.4 x 1.02mm |
| Height | 1.02mm |
| Minimum Operating Supply Voltage | 1 V |
| Minimum Monitored Voltage | 2.93V |
| Minimum Operating Temperature | -40 °C |
| Width | 1.4mm |
| Maximum Monitored Voltage | 3V |
| Maximum Operating Temperature | +125 °C |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 3.04mm |
