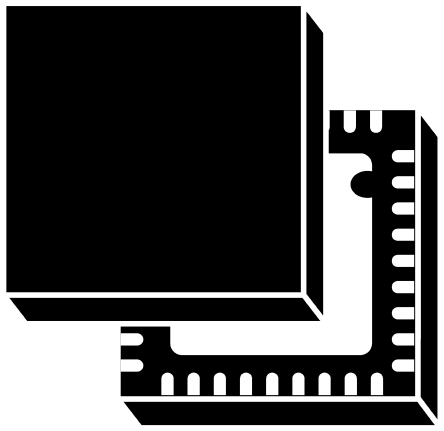

STMicroelectronics STM32F101T6U6A, 32bit ARM Cortex M3 Microcontroller, 36MHz, 32 kB Flash, 36-Pin VFQFPN [STM32F101T6U6A]; 145-9464
0₫
Mã kho: 1459464
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | STM32F |
Package Type | VFQFPN |
Mounting Type | Surface Mount |
Pin Count | 36 |
Device Core | ARM Cortex M3 |
Data Bus Width | 32bit |
Program Memory Size | 32 kB |
Maximum Frequency | 36MHz |
RAM Size | 6 kB |
Number of PWM Units | 1 |
ADC Channels | 10 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 3.6 V |
Number of ADC Units | 1 |
Number of Timers | 5 |
Dimensions | 6.125 x 6.125 x 1mm |
Number of I2C Channels | 1 |
Timers | 1 x 24 bit, 4(4 x 16 bit) |
Number of USART Channels | 2 |
Width | 6.125mm |
PWM Channels | 4 |
Height | 1mm |
Timer Resolution | 16 bit, 24 bit |
ADCs | 1(10 x 12 bit) |
Length | 6.13mm |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Pulse Width Modulation | 1(4 x 16 bit) |
ADC Resolution | 12bit |
PWM Resolution | 16bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | MCU |
