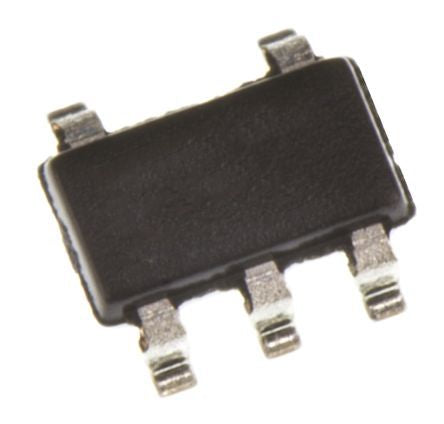

LDLN030G33R, Linear Voltage Regulator [LDLN030G33R]; 192-4971
0₫
Mã kho: 1924971
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Maximum Output Current | 300mA |
| Package Type | TSOT-23 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.6 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 5 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Typical Dropout Voltage @ Current | 230 mV @ 0.3 A |
| Width | 1.6mm |
| Load Regulation | 0.007 %/mA |
| Dropout Voltage Measurement Current | 0.3 A |
| Line Regulation | 1500 μV/V |
| Length | 2.9mm |
| Accuracy | ±3% |
| Dimensions | 2.9 x 1.6 x 0.9mm |
| Quiescent Current | 360µA |
| Height | 0.9mm |
