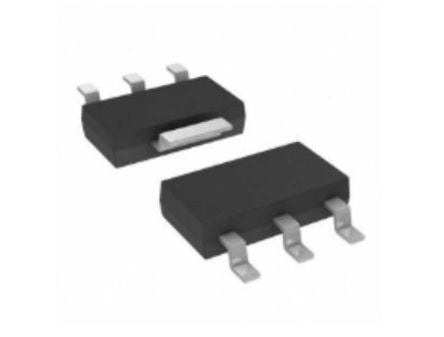

LDL1117S33R, LDO Voltage Regulators [LDL1117S33R]; 196-1952
0₫
Mã kho: 1961952
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 600 @ 1.2 AV |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | SOT-223 |
| Maximum Output Current | 1.2A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.6 V |
| Maximum Input Voltage | 18 V |
| Pin Count | 4 |
| Number of Outputs | 1 |
| Quiescent Current | 500µA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.7mm |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Width | 3.7mm |
| Line Regulation | 0.02 %/V |
| Length | 6.7mm |
| Load Regulation | 15 mV |
