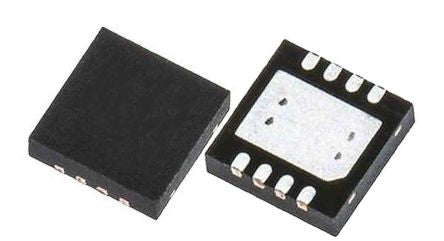

LD39200DPUR, LDO Voltage Regulators [LD39200DPUR]; 196-1950
0₫
Mã kho: 1961950
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 0.8 → 4.5 V |
| Dropout Voltage at Maximum Current | 130 @ 2 AV |
| Output Type | Adjustable |
| Package Type | DFN |
| Maximum Output Current | 2A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 1.25 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 8 |
| Number of Outputs | 1 |
| Quiescent Current | 3mA |
| Accuracy | ±3% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Load Regulation | 0.4 %/A |
| Line Regulation | 0.1 %/V |
| Length | 4.1mm |
| Dimensions | 4.1 x 4.1 x 0.95mm |
| Width | 4.1mm |
| Enable | Yes |
| Height | 0.95mm |
