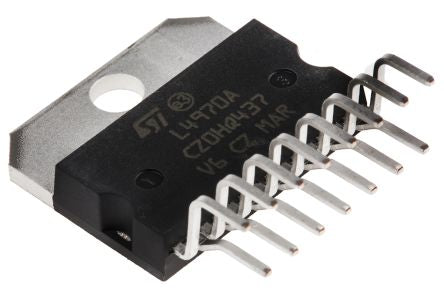

STMicroelectronics, L4970A Step-Down Switching Regulator 10A Adjustable 15-Pin, MULTIWATT V [L4970A]; 178-1392
0₫
Mã kho: 1781392
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 10A |
Maximum Output Voltage | 40 V |
Regulator Function | Buck Controller |
Minimum Output Voltage | 5.1 V |
Minimum Input Voltage | 15 V |
Maximum Input Voltage | 50 V |
Output Type | Adjustable |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Pin Count | 15 |
Package Type | MULTIWATT V |
Switching Regulator | Yes |
Line Regulation | 30 mV |
Load Regulation | 50 mV |
Dimensions | 19.6 x 5 x 10.7mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +150 °C |
Height | 10.7mm |
Length | 19.6mm |
Maximum Switching Frequency | 500 kHz |
Width | 5mm |
