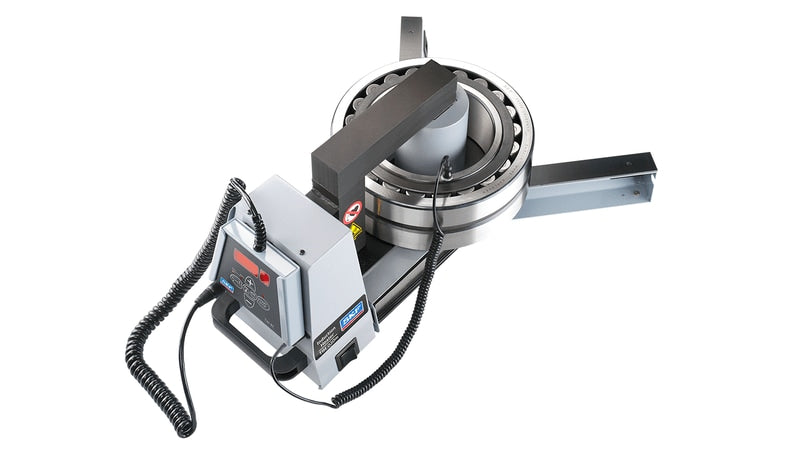

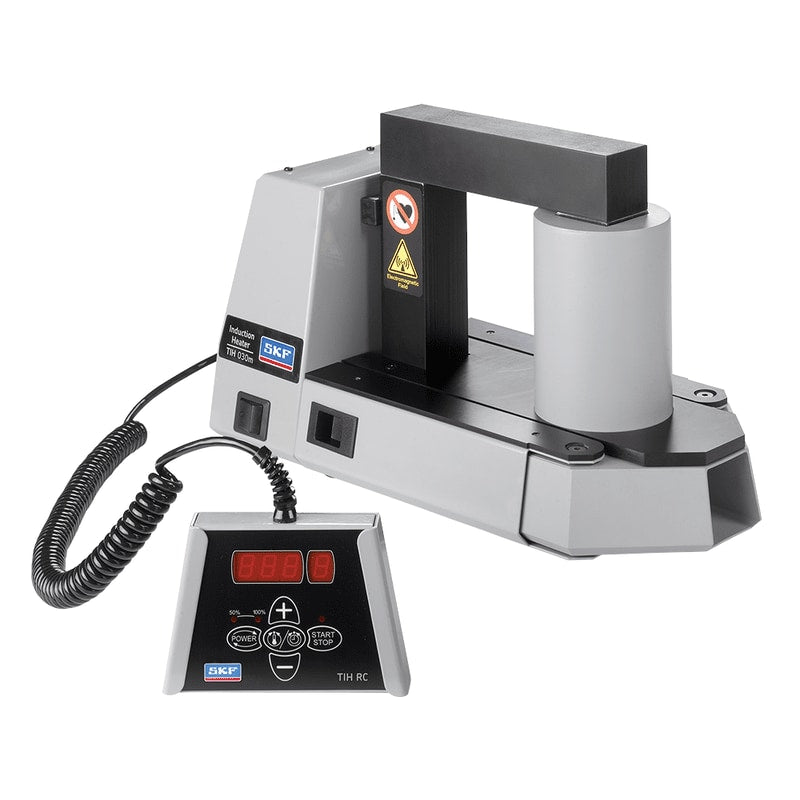

The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb).
The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings.
The induction heating system is supplied standard with three yokes and is available in two executions: 230V/50-60Hz and 100-110V/50-60Hz.
 |
 |

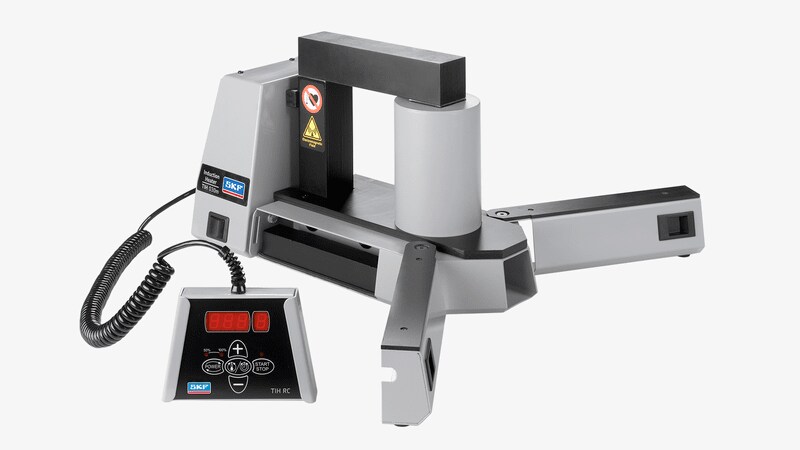

| Foldable bearing support arms allow larger diameter bearings to be heated, and reduce the risk of the bearing toppling during heating. | Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes |
| TECHNICAL DATA | ||
|---|---|---|
| Designation | |
TIH 030M/230V |
| TIH 030M/110V |
||
| Description |
Induction heater |
|
| SKF m20 performance |
28 kg (61.7 lb) |
|
| Voltage, V/Hz |
230V/50-60Hz or 100-110V/50-60Hz |
|
| Bearing: | - Maximum weight | 40 kg (88 lb) |
| - Maximum bore diameter | 20 - 300 mm (0.8 - 11.8 in.) |
|
| Temperature control: |
- Range * | 0 - 250 °C (32 - 482 °F) |
| - Magnetic probe | Yes, K-type |
|
| - Accuracy (electronics) | ± 2 °C (± 3.6 °F) |
|
| Time control: | - Range | 0 - 60 minutes |
| - Accuracy | ± 0,01 sec. |
|
| Performance example : | - bearing, weight, temperature, time | 23136 CC/W33, 28 kg, 110 °C, 20m |
| Thermometer mode |
Yes |
|
| Bearing mode |
Yes |
|
| Power setting |
2-step; 50% or 100% |
|
| Demagnetisation according to SKF norms (automatic) |
Yes (<2 A/cm) |
|
| Can heat sealed bearings |
Yes |
|
| Can heat pre-greased bearings |
Yes |
|
| Error guiding codes |
Yes |
|
| Thermal overload protection |
Yes |
|
| Control panel |
Control panel and LED display integrated in remote control |
|
| Operating area (w x h) |
100 x 135 mm (3.9 x 5.3 in.) |
|
| Coil diameter |
95 mm (3.7 in.) |
|
| Dimensions (w x d x h) |
450 x 195 x 210 mm (17.7 x 7.6 x 8.2 in.) |
|
| Total weight, including yokes |
20,9 kg (46.0 lb) |
|
| Maximum power consumption |
2,0 kVA |
|
| Standard yokes |
|
45 x 45 x 215 mm (1.7 x 1.7 x 8.4 in.) for heating bearings with bore diameter of 65 mm (2.6 in.) and larger. |
| 28 x 28 x 215 mm (1.1 x 1.1 x 8.4 in.) for heating bearings with bore diameter of 40 mm (1.6 in.) and larger. |
||
| 14 x 14 x 215 mm (0.5 x 0.5 x 8.4 in.) for heating bearings with bore diameter of 20 mm (0.8 in.) and larger |
||
| Core cross section |
45 x 45 mm (1.7 x 1.7 in.) |
|
| Bearing support arms |
Yes, foldable |
|
| Yoke storage |
Yes, internal integrated in foldable bearing support arms |
|
| Cooling fan |
No |
|
| Swivel arm |
No |
|
| Housing material |
Steel and glass filled polyamide |
|
| * Maximum heating temperature capacity depends on the weight and geometry of the bearing or workpiece. The heaters can achieve higher temperatures, please contact SKF for advice. | ||
| ACCESSORIES | |
|---|---|
| Designation | Description |
| TIH 030-Y6 | Optional yoke 40 x 40 x 215 mm (1.6 x 1.6 x 8.5 in) |
| TIH 030-Y3 | Optional yoke 20 x 20 x 215 mm (0.8 x 0.8 x 8.5 in) |
| TIH 030-YS | Support yoke set (x2) 45 x 45 x 100 mm (1.8 x 1.8 x 3.9 in) |
| SPARE PART | |
|---|---|
| Designation | Description |
| TIH 030-Y7 | Standard yoke 45 x 45 x 215 mm (1.8 x 1.8 x 8.5 in) |
| TIH 030-Y4 | Standard yoke 28 x 28 x 215 mm (1.1 x 1.1 x 8.5 in) |
| TIH 030-Y2 | Standard yoke 14 x 14 x 215 mm (0.5 x 0.5 x 8.5 in) |
| TIH 030-P230V | Power print 230V - 220-240 V, 50-60 Hz |
| TIH 030-P110V | Power print 110V - 100-120 V, 50-60 Hz |
| TIH CP | Control print |
| TIH RC | Remote control |
| TIH CB10A | Circuit breaker 10A for TIH 030M/230V |
| TIH CB20A | Circuit breaker 20A for TIH 030M/110V |
| TIH P20 | Temperature probe, K-type including cable and plug |
| LGAF 3E/0.035 | Tube of anti-fretting paste for heater maintenance |
