Effortless bearing dismounting up to 100 kN

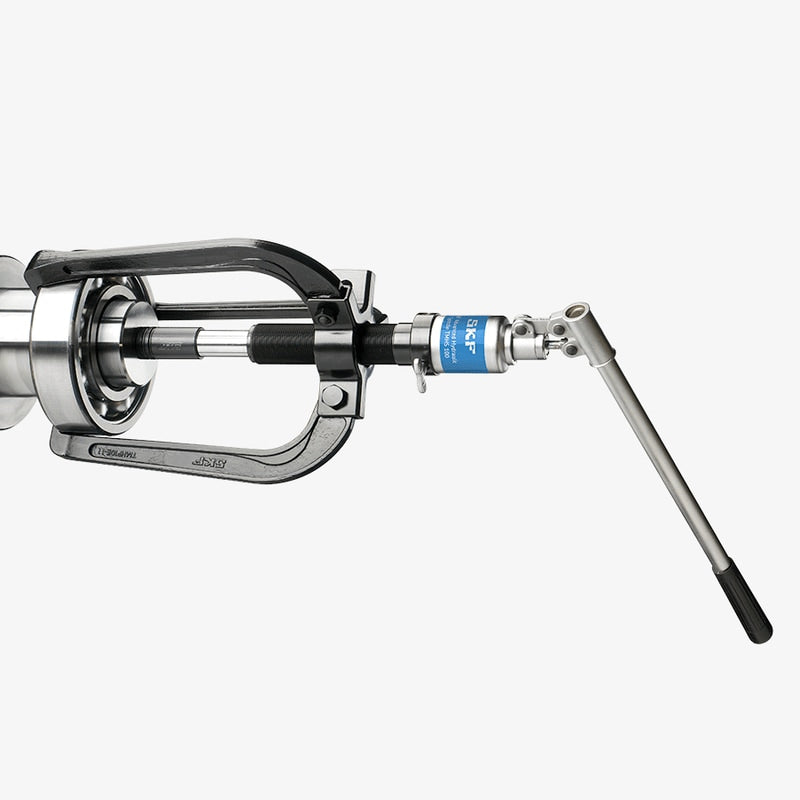

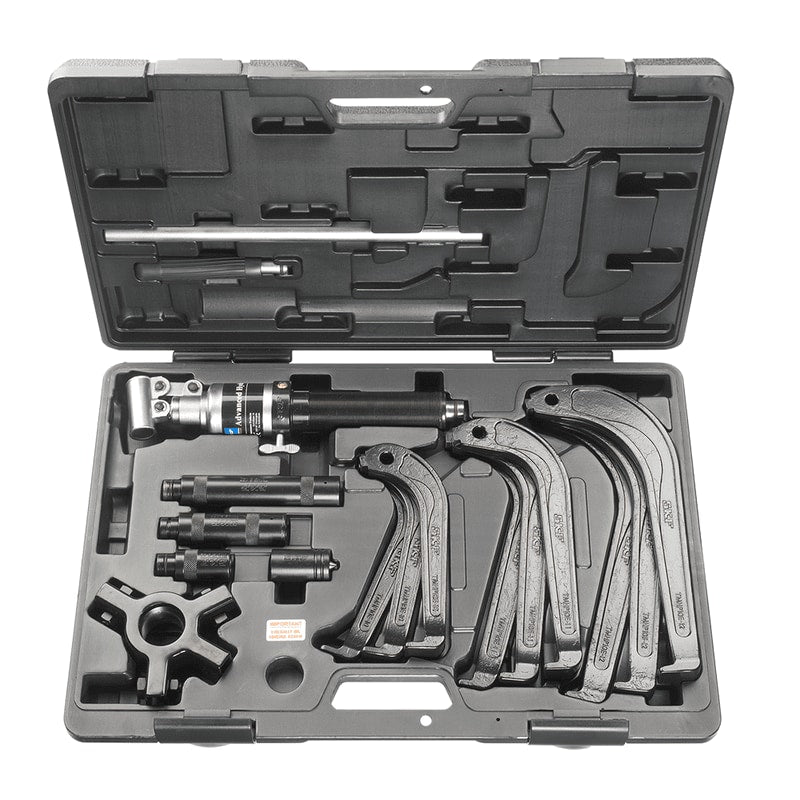

The SKF TMHP 10E jaw puller kit is equipped with a hydraulic spindle, which facilitates effortless bearing dismounting up to 100 kN (11.2 ton US). The versatile puller kit includes three different arm sizes and can be assembled as a two-arm puller or a three-arm puller depending on the space and demand of the application.
- High load rating of 100 kN (11.2 ton US) makes the puller suitable for a variety of dismounting jobs
- The 3 different arm sizes, with a maximum effective arm length of 200 mm (7.9 in), make the TMHP 10E suitable for use in a wide range of applications
- The self-locking arms minimise the risk of the puller slipping from the application when under load
- Hydraulic spindle facilitates effortless dismounting
- The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN (11.2 ton US)
- Long stroke of hydraulic spindle, 80 mm (3.1 in), facilitates dismounting in one operation
- Extension pieces of the hydraulic spindle allow quick adaptation to pulling length
- The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TMHS 100 | Advanced hydraulic spindle, 100 kN |
| TMHS 100-1 | Advanced hydraulic spindle, 100 kN, spindle only |
| TMHS 8T | Set of extension pieces and nose piece for TMHS 100 and 8E |
| TMHP 10E-5 | Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E |
| TMHP 10E-10 | Arm for TMHP 10E and TMHC 110E, 190 mm long |
| TMHP 10E-11 | Arm for TMHP 10E, 240 mm long |
| TMHP 10E-12 | Arm for TMHP 10E, 285 mm long |
