Powerful combination of a jaw and strong back puller

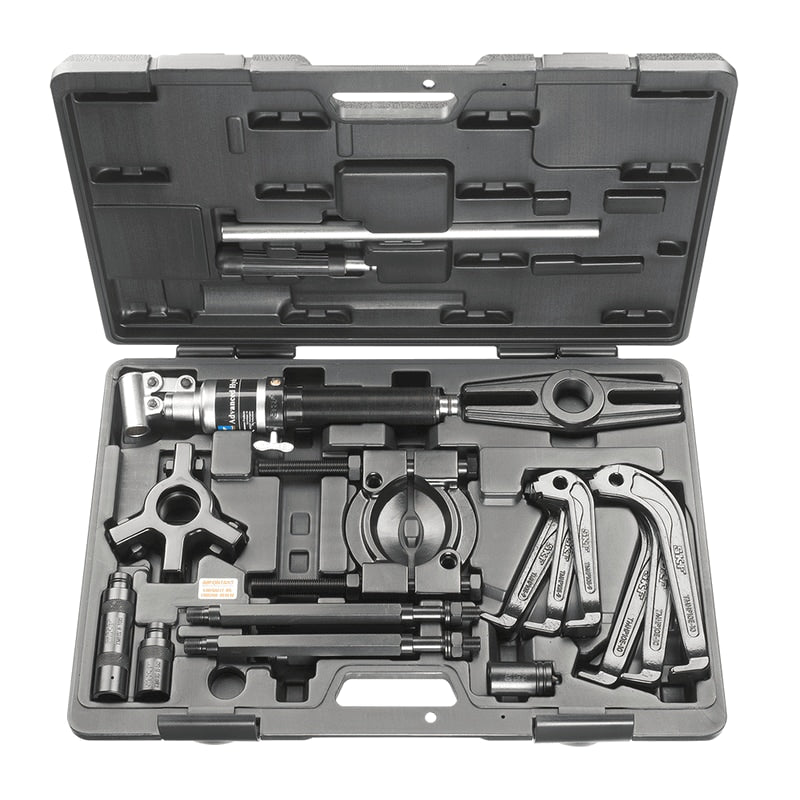

The SKF TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.
- A versatile puller kit facilitates safe and easy dismounting in a variety of applications
- Hydraulic spindle facilitates easy and quick dismounting
- High load rating of 100 kN (11.2 US ton)
- The strong back puller includes two different arm lengths for maximum reach of 120 mm (4.7 in.)

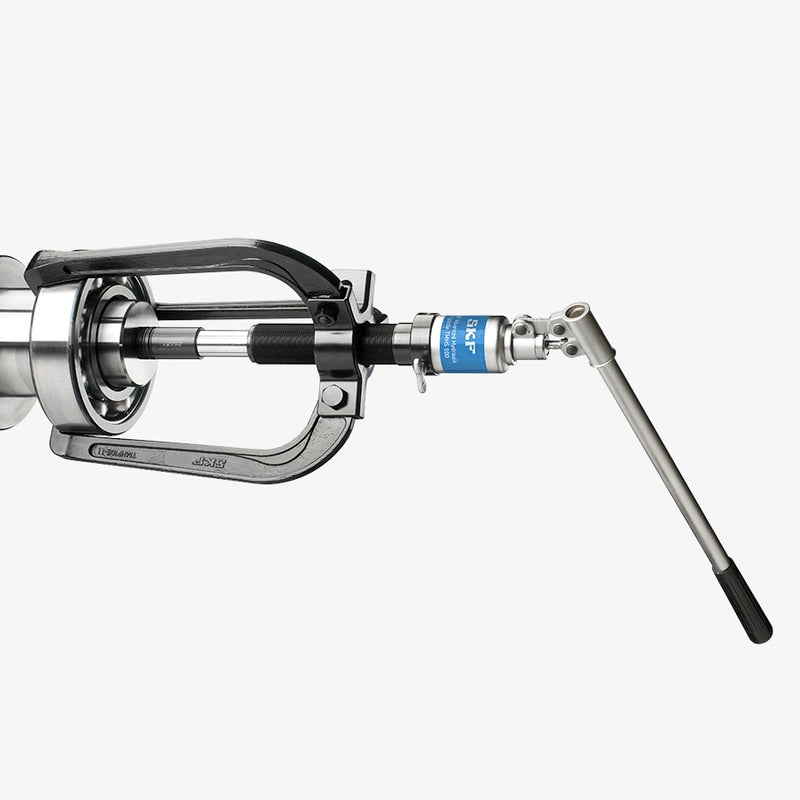

- The jaw puller can be assembled as a three-arm or two-arm puller depending on the space and demands of the application

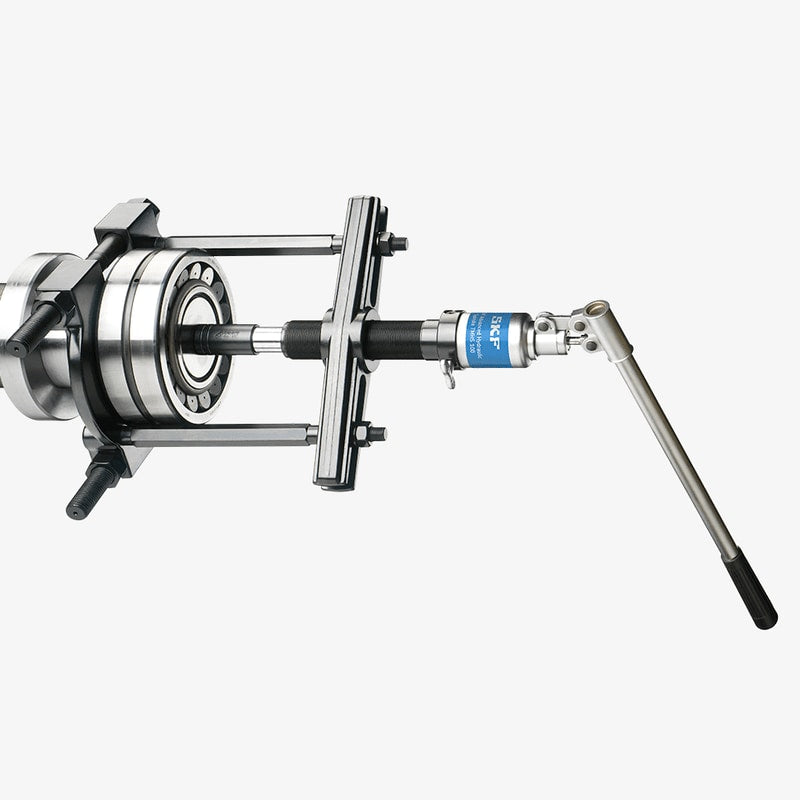

- The firm grip of the strong back puller behind the bearing’s inner ring reduces the force required to dismount the bearing
- Supplied with extension rods to allow quick adaptation to pulling lengths up to 245 mm (9.6 in.)
- The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TMHP 10E-5 | Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E |
| TMHP 10E-9 | Arm for TMHC 110E, 140 mm long |
| TMHP 10E-10 | Arm for TMHP 10E and TMHC 110E, 190 mm long |
| TMBS 100E-1 | Beam for TMBS 100E and TMHC 110E |
| TMBS 100E-2 | Main rods with washers and nuts for TMBS 100E, 150E and TMHC 110E |
| TMBS 100E-3 | Extension rod for TMBS 100E, 150E and TMHC 110E, 125 mm long |
| TMBS 100E-5 | Separator with bolts and nuts for TMBS 100E and TMHC 110E |
| TMHS 100 | Advanced hydraulic spindle, 100 kN |
| TMHS 100-1 | Advanced hydraulic spindle, 100 kN, spindle only |
| TMHS 8T | Set of extension pieces and nose piece for TMHS 100 and 8E |
