Easy bearing dismounting even in the tightest spaces

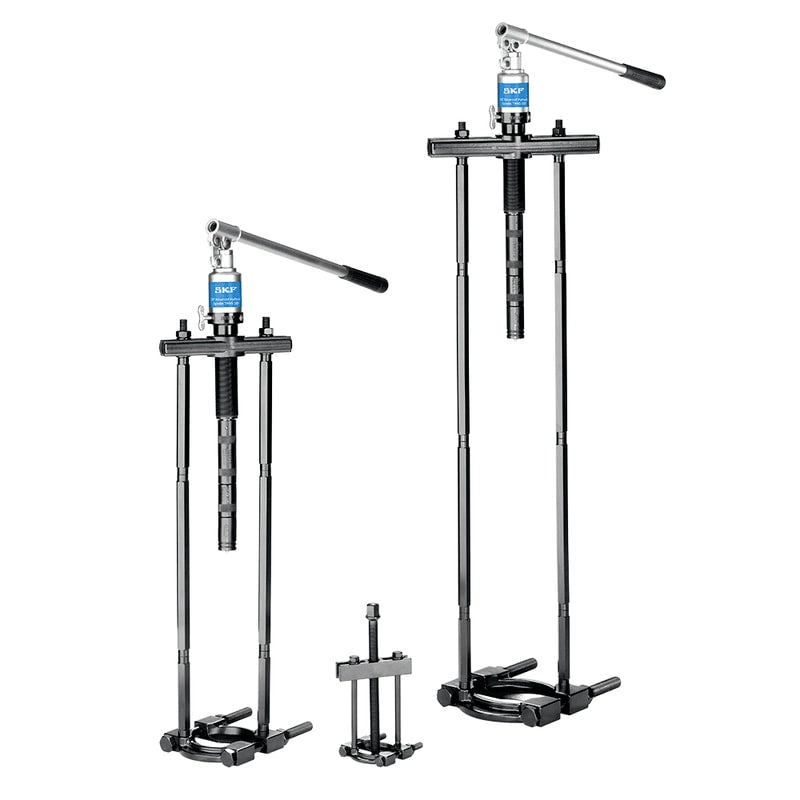

The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation.

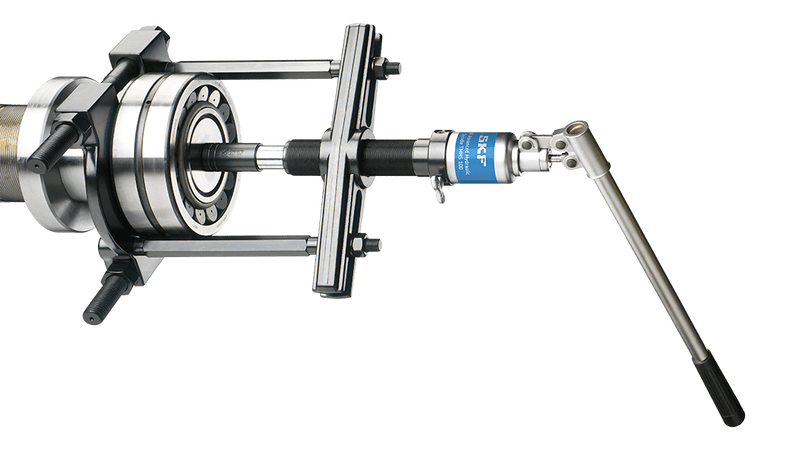

- Special separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft
- The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
- The firm grip behind the bearing’s inner ring reduces the force required to dismount the bearing
- The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload
- A hydraulic spindle stroke of 80 mm (3.1 in.) helps facilitate dismounting in one operation
- SKF TMBS 50E is equipped with a mechanical spindle for force generation
- SKF TMBS 100E and the SKF TMBS 150E are equipped with a hydraulic spindle, which allows for easy application of force up to 100 kN (11.2 US ton)
- Supplied with hydraulic spindle extension pieces to allow quick adaptation to pulling length
- SKF TMBS 100E and SKF TMBS 150E are supplied with extension rods to allow quick adaptation to pulling lengths up to 816 mm (32.1 in.)
| SPARE PARTS | |
|---|---|
| Designation | Description |
| Advanced hydraulic spindle, 100 kN | TMHS 100 |
| Advanced hydraulic spindle, 100 kN, spindle only | TMHS 100-1 |
| Set of extension pieces for the hydraulic spindle, nose piece | TMHS 8T |
| Beam | TMBS 100E-1 |
| Main rods, nuts, washers (set) | TMBS 100E-2 |
| Extension rods 125 mm/4.9 in (2pcs) | TMBS 100E-3 |
| Extension rods 285 mm/11.2 in (4pcs) | TMBS 100E-4 |
| Separator (complete) | TMBS 100E-5 |
