Removes bearing without dismantling machinery

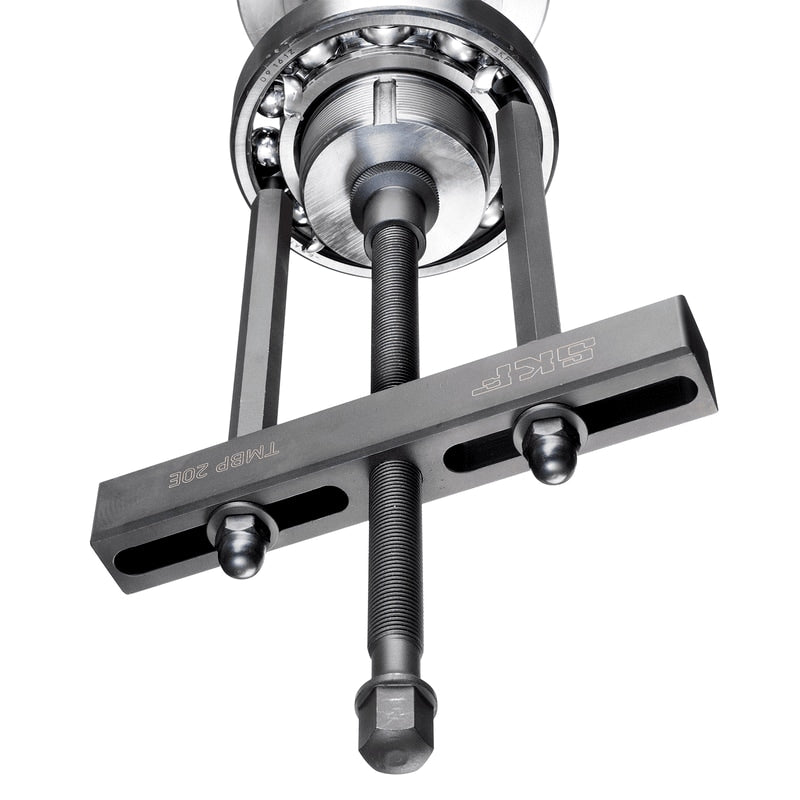

The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).
- Allows a wide of range of deep groove ball bearings to be dismounted
- Ball adapters designed for a long service life
- Extension rods allow a reach of up to 583 mm (23 in.)
- Spanner stop function on spindle for easy and safe handling
- Self-locking nose piece helps minimise damage to shaft, and improves puller stability

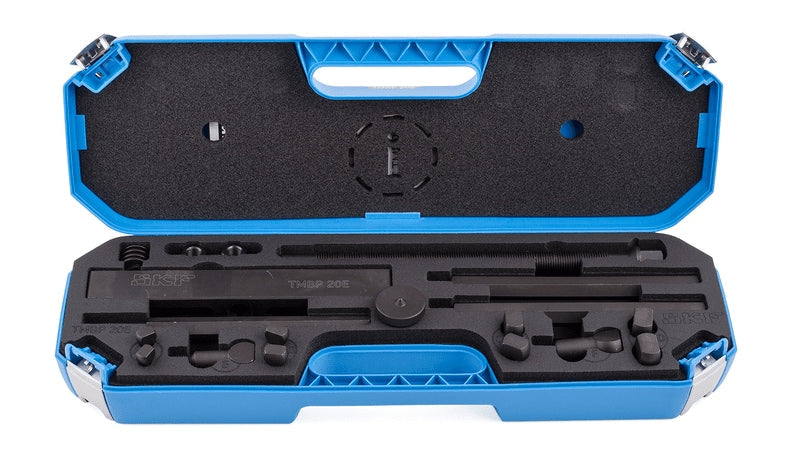

- Supplied in a sturdy carrying case

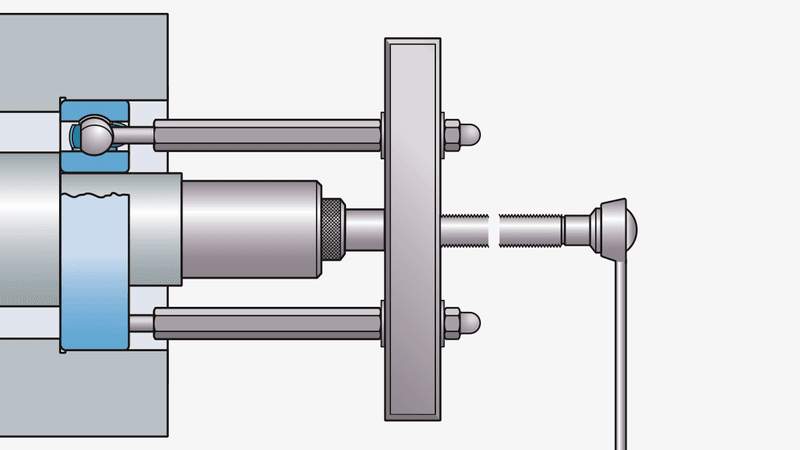

How it works
| SUITABLE BEARINGS | ||||
|---|---|---|---|---|
| SKF TMBP 20E is suitable for dismounting the following deep groove ball bearings | ||||
| 60.. series | 62.. series | 63.. series | 64.. series | 16… series |
| 6021–6032 | 6213–6230 | 6309–6320 | 6406–6418 | 16026–16032 |
| ACCESSORIES | |
|---|---|
| Designation | Description |
| LGEV 2/ 0.035 | Extremely high viscosity grease, 35 gram tube |
| TMMX 280 | Puller protection blanket |
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TMBP 20E-CX | Toolcase with inlay for TMBP 20E |
| TDTC 1/X | Toolcase without inlay |
