The SKF TLSD series is the first choice when a simple and reliable automatic lubricator is required under variable temperatures, or when the application conditions (such as vibration, limited space or hazardous environments) require a remote mounting.
Features & benefits
- Filled with SKF lubricants especially developed for bearing applications
- Temperature independent dispense rate
- Maximum discharge pressure of 5 bar over the whole dispensing period
- Transparent reservoir allows visual inspection
- Red-yellow-green LEDs indicate the lubricator’s status
- Refill sets include battery pack
- Complete sets are supplied ready to use, including the drive unit, battery pack, filled lubricant canister and matching support plate.
- Suitable for both direct and remote installation
- SKF DialSet software helps to calculate the correct dispense rate
- Extensive range of accessories
Typical applications
- Critical applications where extreme reliability and additional monitoring is required
- Applications in restrictive and hazardous locations
- Applications requiring high volumes of lubricant
PRODUCT DETAILS
A . |

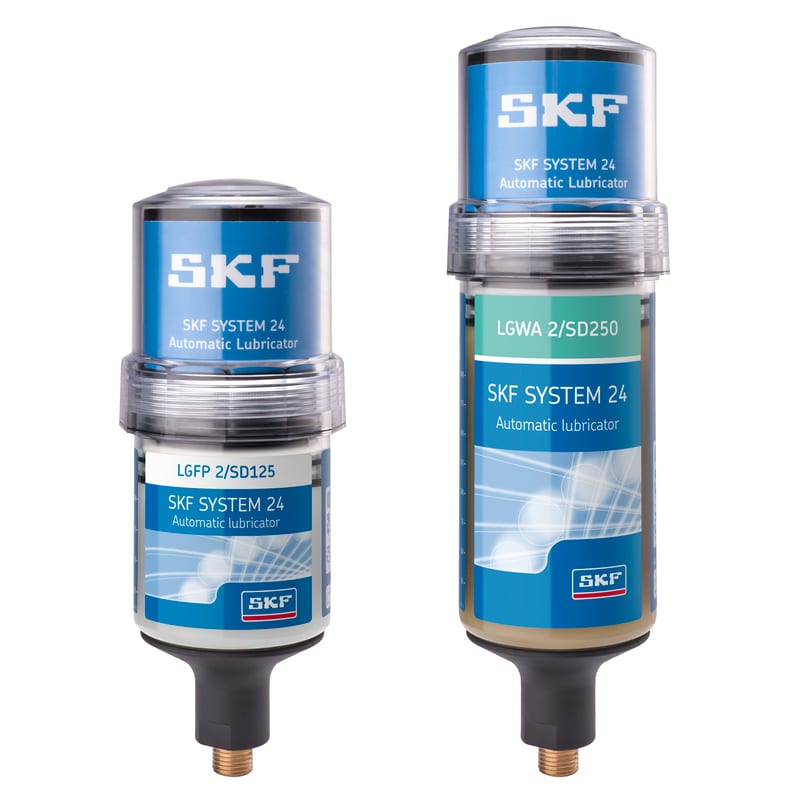

Drive unit - TLSD 1-DS Top part of TLSD with electric drive and time setting wheel. Supplied with plastic cap and support plate for grease lubrication |
|
B . |
Refill set - e.g. LGWA 2/SD250 Replaceable canister filled with 125 ml or 250 ml of grease or oil. Every refill set is supplied with battery pack. |
|
C . |
Support plate The support plate for grease lubrication is supplied with TLSD 1-DS. A support plate for oil lubrication with integrated non return valve (TLSD 1-SPV) can be ordered separately. |
DRIVE UNIT SETUP
A . | The transparent cap ensures easy visual monitoring of the lubrication settings | |
B . | The unit can be programmed to dispense lubricant in 1, 2, 3, 4, 6, 8, 9, 10 and 12 month settings | |
C . | The same drive unit can be used with both cartridge versions by simply adjusting the 125/250 ml switch | |
D . | Traffic light LEDs are visual from all sides because of the presence of dual LEDs on the sides of the lubricator. | |
The meaning of the lights is as follows | ||
Green light: the lubricator is properly functioning Yellow light: The lubricator is still functioning, but soon same action will be required. | ||
Yellow light: serves as a pre-warning light | ||
Red light: the lubricator stopped operating |
SPARE PARTS | |
---|---|
Designation | Description |
TLSD 1-BAT | Battery pack |
TLSD 1-DS | Drive unit, plastic cap and support plate |
TLSD 1-CAP | Drive unit cap |
TLSD 1-SP | Support plate |
TLSD 1-SPV | Support plate with integrated non-return valve |
