Versatility and performance for professional alignment

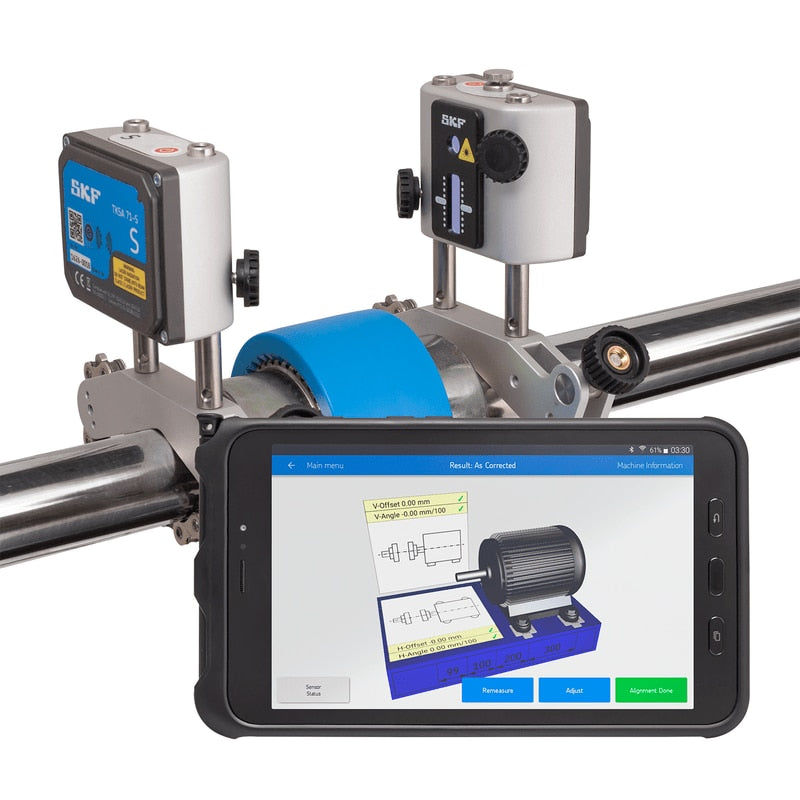

Designed for professional alignment in harsh industrial environments, the TKSA 71 complements SKF’s offering with a high-end shaft alignment tool. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications enable different types of alignments, including horizontal and vertical shafts, spacer shafts and machine trains. Superior alignment performance and long-term industrial durability are achieved with an innovative instrument design that offers high measurement accuracy and excellent protection against dust and water in harsh environments.
- Easy-to-use - Intuitive software applications, guided alignment processes and explanatory videos
- Wide range of applications - Comprehensive accessories and dedicated software applications
- Superior alignment performance - Up to 10 m measurement distance, disturbance compensation, measurement flexibility, only 40° total rotation, automatic measurement and customised alignments with target values
- Protection against harsh environments - Completely sealed measuring units (IP67) to withstand dust and water
- Ultra-compact measuring units - Use in extremely narrow spaces

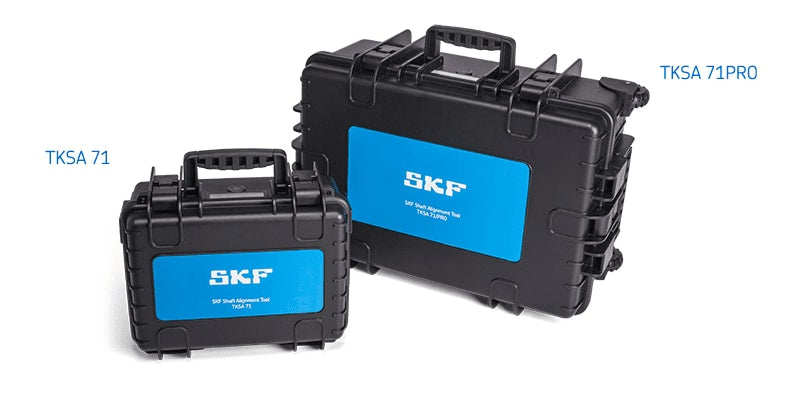

- Robust carrying case - Excellent protection, convenient transport and wireless in-case charging
- Accessories - Extensive range of accessories is available.
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TKSA 71-M | 1x Measuring unit for "M" movable side (including calibration certificate) |
| TKAS 71-S | 1x Measuring unit for "S" stationary side (including calibration certificate) |
| TKSA 71-WPODS | 2x Wireless charging pods incl. split USB cable for TKSA 71 and 71/PRO |
| TKSA 51-VBK | 1 × Standard V-bracket, supplied with 2x threaded rods of 80 mm (3.2 in.), 1x standard chain of 480 mm (18.9 in.) and 4 × magnets |
| TKSA 51-EXTCH | 2 × Extension chains of 1 m (3.3 ft.) for shaft diameters up to 450 mm (17.7 in.) |
| TKSA 51-ROD80 | 4 × threaded rods of 80 mm (3.1 in.) |
| TKSA 51-ROD120 | 4 × threaded rods of 120 mm (4.7 in.) |
