The laser shaft alignment system with enhanced measuring and reporting

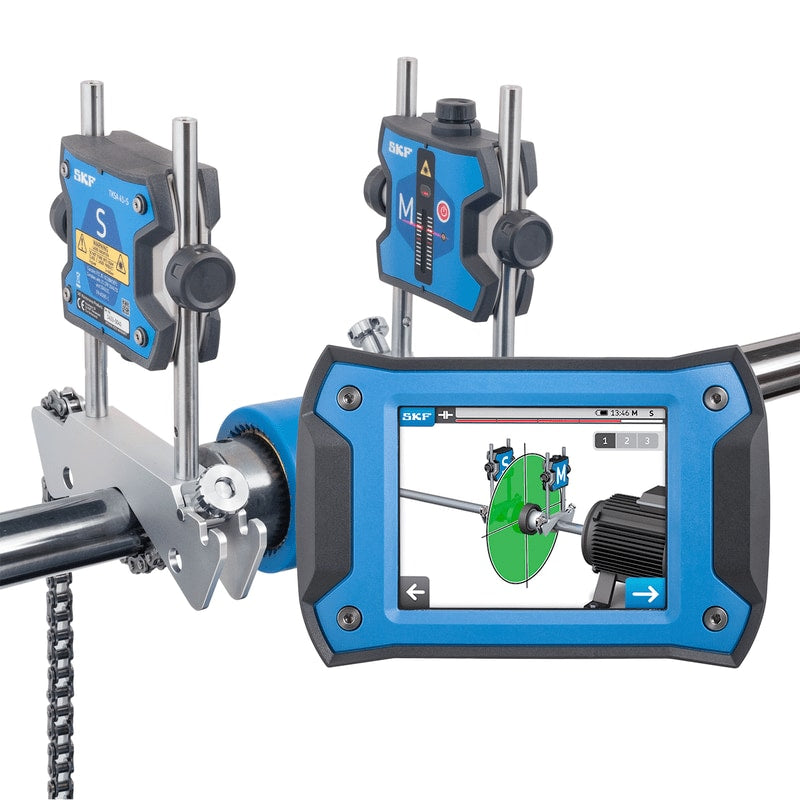

The TKSA 41 is an advanced laser alignment solution for achieving accurate shaft alignments. With two wireless measurement units, large sized detectors and powerful lasers, the instrument performs precise measurements in even the most challenging conditions. The ergonomic display unit with intuitive touch screen navigation makes your alignments fast and easy, whilst innovative features, like the “free measurement”, increase the alignment performance. With the focus on improving alignment practices, the SKF Shaft Alignment Tool, TKSA 41, is one of the industry’s best value alignment solutions.
- Wireless communication improves instrument handling and allows alignment of difficult to reach applications from a safe position.
- Free measurement allows alignment measurements to start at any angle and finish with an angular sweep of just 90°.
- Automatic measurement enables hands-free measurements by detecting the head position and taking a measurement when the heads are rotated into the right position.
- Automatic reports are generated after each alignment. The reports can be customised with notes and pictures from the built-in camera for the most comprehensive overview. All reports can be exported as pdf files.
- Live view supports intuitive measurements and facilitates horizontal and vertical alignments.
- Machine library gives an overview of all machines and alignment reports.
- QR codes can be used to further simplify machine identification and improve the alignment workflow.

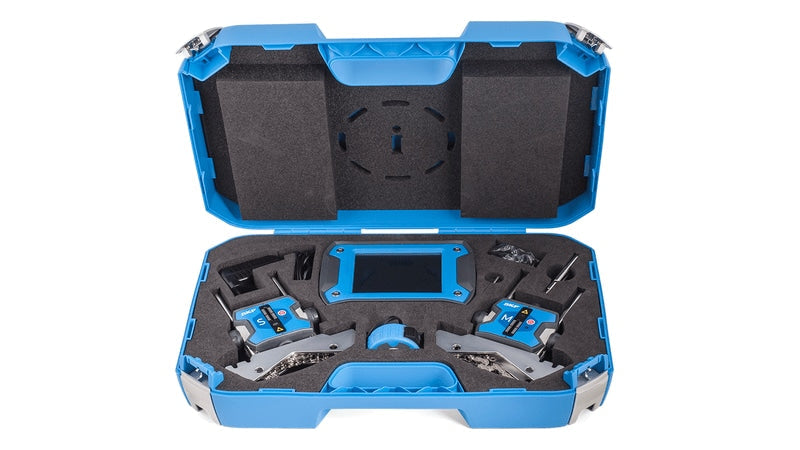

- The TKSA 41 is supplied in a sturdy SKF carrying case
- Extensive range of accessories is available.
| SPARE PARTS | |
|---|---|
| Designation | Description |
| TKSA 41-QR | 5x A5 sheets with 6x QR code stickers per sheet (total of 30x stickers) |
| TKSA 41-DU | 1x TKSA 41 Display Unit |
| TKSA 41-M | 1x TKSA 41 M Measuring Unit (incl. 1x USB Cable) |
| TKSA 41-S | 1x TKSA 41 S Measuring Unit (incl. 1x USB Cable) |
| TKSA ROD90 | 4x 90 mm (3.5 in) rods threaded for TKSA 31/41/60/80 |
| TKSA 41-STDCH | 2x 400 mm (15.8 in) standard chains for TKSA 31/41 |
| TKSA VBK | 2x Standard V-brackets (No rods, no chain supplied) for TKSA 31/41/60/80 |
| TKSA TOMMYBAR | 1x Tommy bar for TKSA 31/41/60/80 |
| TKSA EXTCHARG | 1x Power supply with EU, US, UK, AUS adapters for TKSA 31/41/60/80 |
| TDTC 1/C | Toolcase without inlay |
