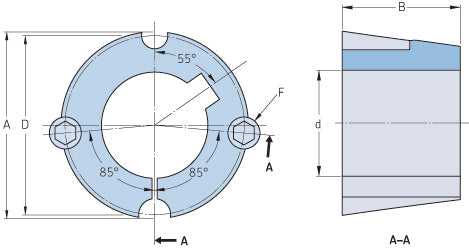

| TECHNICAL DATA | |
|---|---|
| Bushing no. | TB1615 |
| d = Bore diameter (mm) | 24 |
| Bore diameter (in) | 0.94 |
| Keyway width (mm) | 8 |
| Keyway width (in) | 0.31 |
| Keyway depth (mm) | 3.3 |
| Keyway depth (in) | 0.13 |
| A (mm) | 57.2 |
| A (in) | 2.25 |
| B (mm) | 38.1 |
| B (in) | 1.5 |
| D (mm) | 54 |
| D (in) | 2.13 |
| E (mm) | - |
| E (in) | - |
| F (mm) | 9.525 x 15.875 |
| F (in) | - |
| Weight (kg) | 0.47 |
| Weight (lbs) | 1.04 |
