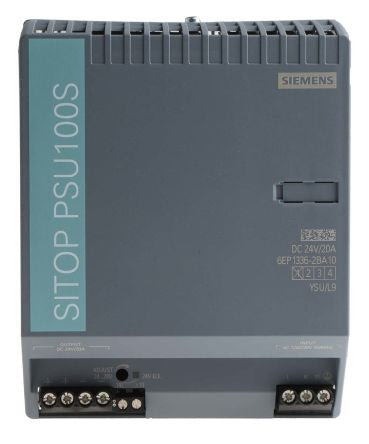

Siemens, SITOP PSU100S DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A Output Current [6EP1336-2BA10]; 756-3977
by Siemens
0₫
Mã kho: 7563977
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 132V ac |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 145mm |
| Width | 115mm |
| Load Regulation | 0.01 |
| Mounting Type | DIN Rail Mount |
| Output Voltage Adjustment Range | 24 → 28V |
| Ripple And Noise | 150mV Pk-Pk |
| Minimum Temperature | 0°C |
| Depth | 150mm |
| MTBF | 1778916h |
| Maximum Temperature | +70°C |
| Series | SITOP PSU100S |
| Hazardous Area Certification | IECEx |
