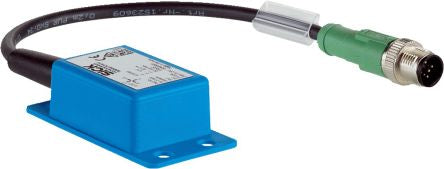

Sick Analogue Inclination Sensor switching current 45 mA supply voltage 11 → 30 V dc [TMM55E-PMH010]; 136-9182
by Sick
0₫
Mã kho: 1369182
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Analogue |
| Body Style | Block |
| Mounting Style | Screw Mount |
| Supply Voltage | 11 → 30 V dc |
| Terminal Type | 5-Pin M12 Male Connector |
| Maximum DC Voltage | 30V |
| Detection Range | ±10 ° |
| Switching Current | 45 mA |
| Switching Frequency | 18 Hz |
| Length | 62mm |
| Width | 32.3mm |
| Depth | 18.7mm |
| Dimensions | 62 x 32.3 x 18.7 mm |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +80°C |
| Standards Met | EN 60068-2-27, EN 60068-2-6, EN 61326-1, EN ISO 13309, EN ISO 14982, IEC 60529 |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -40°C |
| Response Time | 75 ms |
| Housing Material | ABS |
