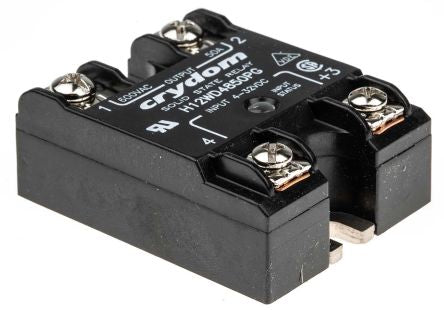

Sensata / Crydom 50 A Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V Maximum Load [H12WD4850PG]; 358-3047
0₫
Mã kho: 3583047
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 660 V |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Output Device | SCR |
| Dimensions | 58.4 x 45.7 x 22.9mm |
| Depth | 45.7mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -40 → +80°C |
| Load Voltage Range | 48 → 660V ac |
| Control Voltage Range | 4 → 32 V dc |
| Length | 58.4mm |
| Height | 22.9mm |
| Minimum Operating Temperature | -40°C |
