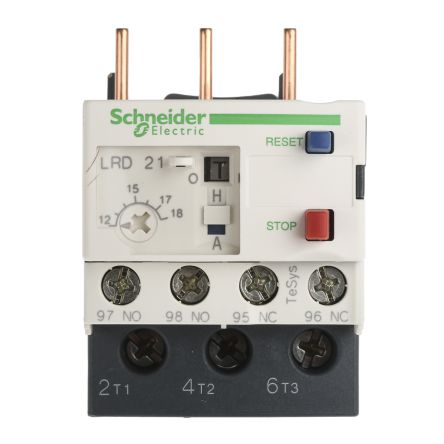

Schneider Electric Thermal Overload Relay NO/NC, 12 → 18 A, 18 A [LRD21]; 394-9330
0₫
Mã kho: 3949330
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| FLC Motor Rating | 12 → 18 A |
| Contact Current Rating | 18 A |
| Pole Configuration | 3P |
| Range | TeSys |
| Contact Voltage Rating | 690 V ac |
| Mounting Style | Direct Contactor |
| Series | LRD2 |
| Normal State Configuration | NO/NC |
| Number Of Auxiliary Contacts | 2 |
| Reset Method | Automatic, Manual |
| Terminal Type | Screw |
| Depth | 66mm |
| Length | 123mm |
| Width | 45mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 → +60 °C |
