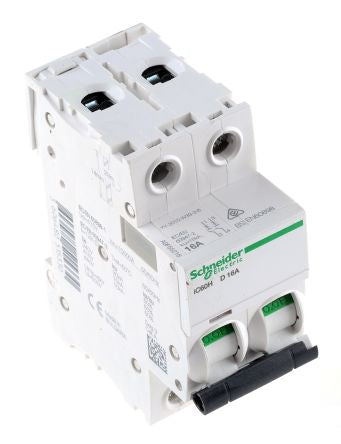

Schneider Electric Acti 9 iC60H MCB Mini Circuit Breaker 2P, 16 A, 10 KA, Curve D [A9F55216]; 791-3521
0₫
Mã kho: 7913521
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | Acti 9 |
| Series | iC60H |
| Number of Poles | 2 |
| Current Rating | 16 A |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 12 → 133 V, 220 → 240 V, 380 → 415 V, 440 V |
| Rated DC Voltage | 100 → 133V |
| Mounting Style | DIN Rail |
| Breaking Capacity | 10 kA |
| Length | 85mm |
| Width | 36mm |
| Depth | 78.5mm |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
| Circuit Breaker Type | MCB |
| Reset Actuator Type | Rocker |
