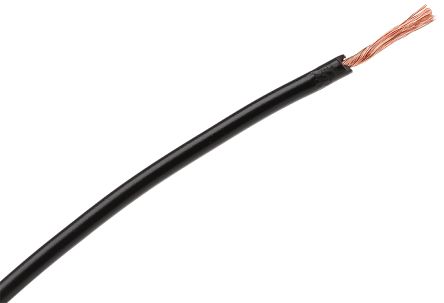

RS PRO Unshielded Test Lead Wire 0.5 mm² CSA 500 V Black PVC, 100 Strands 5m; 748-2011
by RS PRO
0₫
Mã kho: 7482011
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cross Sectional Area | 0.5 mm² |
| Sheath Colour | Black |
| Insulation Material | PVC |
| Length | 5m |
| Voltage Rating | 500 V |
| American Wire Gauge | 20 AWG |
| Outer Diameter | 2.3mm |
| Conductor Material | Bare Copper |
| Core Strands | 100/0.08 mm |
| Cable Shape | Single Core |
| Number of Strands | 100 |
| Shield Type | Unshielded |
| Insulation Wall Thickness | 0.65mm |
| Size of Strands | 0.08 mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
