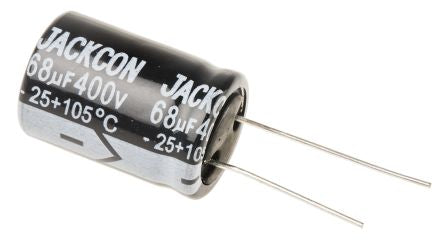

RS PRO 68μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 18 (Dia.) x 26mm +105°C 18mm 7.5mm 26mm; 170-1319
by RS PRO
0₫
Mã kho: 1701319
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 68 µF |
Voltage | 400 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 18 (Dia.) x 26mm |
Height | 26mm |
Length | 26mm |
Minimum Operating Temperature | -25°C |
Diameter | 18mm |
Maximum Operating Temperature | +105°C |
Lifetime | 2000h |
Lead Pitch | 7.5mm |
Series | RS |
Polarised | Polar |
Leakage Current | <=0.03 CV or 3 μA @ 1 min |
Dissipation Factor | 0.2 |
Ripple Current | 350mA |
Tolerance | ±20% |
