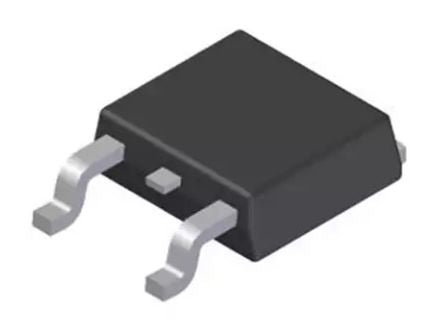

ROHM 200V 3A, Dual Diode, 2+Tab-Pin DPAK RF601BM2DTL [RF601BM2DTL]; 150-1963
by ROHM
0₫
Mã kho: 1501963
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SC-63, TO-252 |
| Maximum Continuous Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Fast Recovery |
| Pin Count | 2 + Tab |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 25ns |
| Peak Non-Repetitive Forward Surge Current | 60A |
