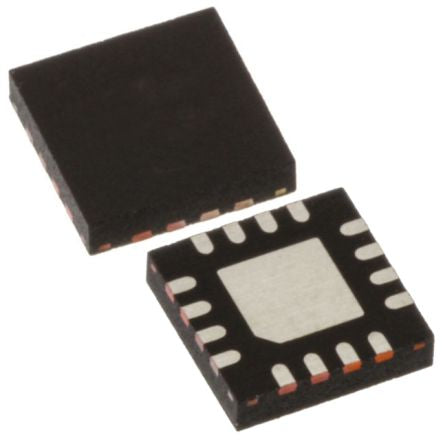

ROHM, BD9B200MUV-E2 Step-Down Switching Regulator Dual 2A Adjustable 16-Pin, VQFN [BD9B200MUV-E2]; 146-7610
by ROHM
0₫
Mã kho: 1467610
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 4.4 V |
| Regulator Function | Buck Converter |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Pin Count | 16 |
| Package Type | VQFN |
| Switching Regulator | Yes |
| Dimensions | 3 x 3 x 0.98mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
| Length | 3mm |
| Height | 0.98mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Switching Frequency | 2 MHz |
