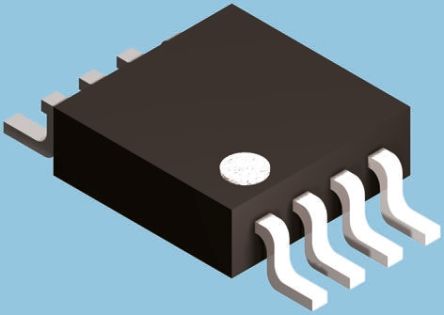

ROHM, BD9001F-E2 Step-Down Switching Regulator 2A Adjustable, 1 → 48 V 8-Pin, SOP [BD9001F-E2]; 731-6753
by ROHM
0₫
Mã kho: 7316753
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 48 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1 V |
| Minimum Input Voltage | 7 V |
| Maximum Input Voltage | 48 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | SOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
| Length | 5.35mm |
| Dimensions | 5.35 x 4.4 x 1.5mm |
| Maximum Operating Temperature | +95 °C |
| Maximum Switching Frequency | 122 kHz |
| Height | 1.5mm |
