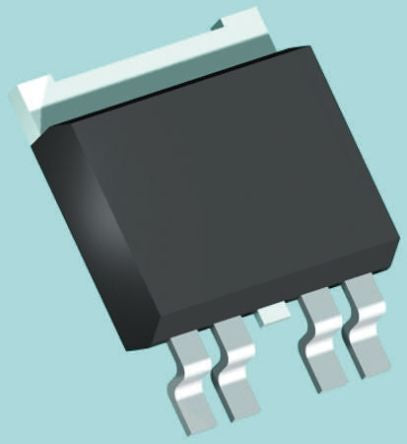

ROHM BD7820FP-E2, LDO Regulator, 1A, ±1%, 2.3 → 6 Vin 5-Pin DPAK [BD7820FP-E2]; 700-3242
by ROHM
0₫
Mã kho: 7003242
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Package Type | TO-252 |
| Maximum Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Accuracy | ±1% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Dimensions | 6.5 x 2.3 x 7mm |
| Width | 2.3mm |
| Length | 6.5mm |
| Line Regulation | 35 mV |
| Reference Voltage | 0.758V |
| Height | 7mm |
| Load Regulation | 100 mV |
